Miejsce pochodzenia: | CHINA |
Nazwa handlowa: | SKYLINE |
Orzecznictwo: | Calibration certificate |
Numer modelu: | SL-T24 |
Minimalne zamówienie: | 1 unit |
---|---|
Cena: | negoitable |
Szczegóły pakowania: | carton box |
Czas dostawy: | 3 work days |
Zasady płatności: | T/T, Western Union, MoneyGram |
Możliwość Supply: | 1 unit |
SKYLINE: | Automatical Paperboard Burst Strength Testing Equipment | Test capacity: | 100kg/cm 2 |
---|---|---|---|
Internal diameter of upper clamp: | φ 31.5± 0.05mm | Internal diameter of down clamp: | φ 31.5± 0.05mm |
Resolution: | 0.1kg, 0.98N, 0.22LB | Accuracy: | ± 0.5% |
Weight: | 64kg | Power: | AC220± 10%, 50Hz |
High Light: | ISO 2759 Bursting Strength Tester,D3786 Bursting Strength Tester,Cardboard Paper Bursting Strength Tester |

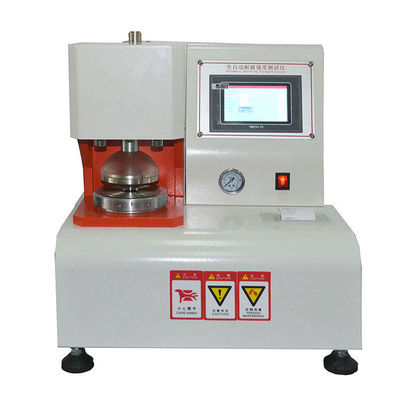

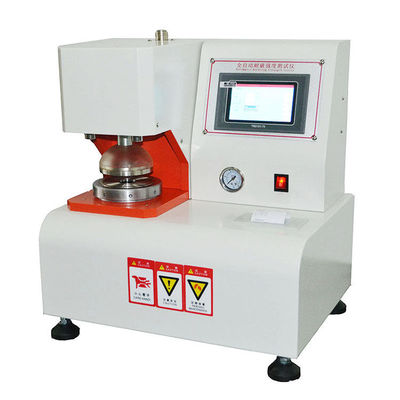

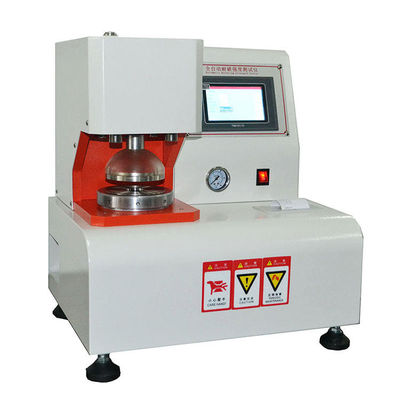

Automatic Bursting Strength Tester is fit for products which are packaged by corrugated paper such as electronic instruments, electric ware, hardwares, bike, valise, food, shoe, furniture etc, to test the bursting-resistance strength of paper box; it can also test cloth and synthetic leather. The bursting strength tester is adapted with signal output of pressure. While specimen is breaking, the max. breaking value will be kept with the alarm buzzer & alert light automatically. Its Accuracy has promoted 20 times more than the traditional gauge.
JIS-L1004,L1018,L1031,K6328,P8131,P8112 and ASTM-D2210,TAPPI T403,ISO2759-2001,GB/T1539

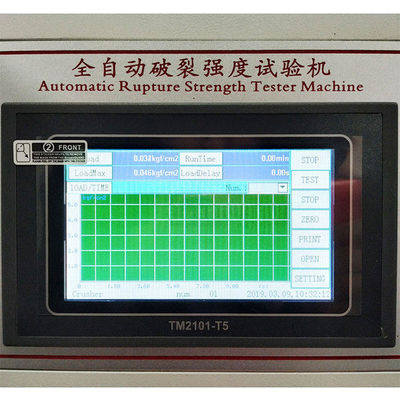

1.Large touch screen controller
2.Equipped with printer. Print the test result immediately.

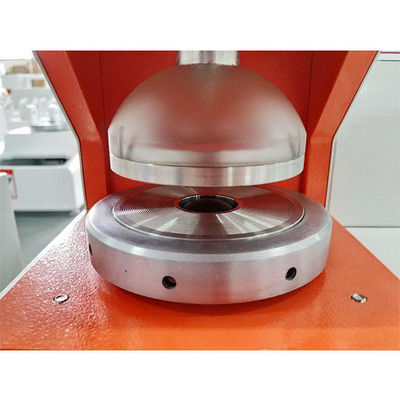

3.Clamping ring material is stainless steel. Durable, fine mechanical property, green product and corrosion resistance are much better than other material.
4.The structure is specially designed and high precision of test results.
5.The equipment is easy and quick operations.
Display |
LCD |
View area |
121*93mm |
Unit |
kg, N, LB(swithchable) |
Test capacity |
100kg/cm 2 |
Internal diameter of upper clamp |
φ 31.5± 0.05mm |
Internal diameter of down clamp |
φ 31.5± 0.05mm |
Film thickness |
2.5mm(Middle embossed area) |
Resolution |
0.1kg, 0.98N, 0.22LB |
Accuracy |
± 0.5% |
Clamp force |
> 690kpa |
Dimensions |
(L×W×H)430×530×520mm |
Weight |
64kg |
Accessories |
A rubber film, a wrench, 10 aluminum pieces for adjusting, a bottle of glycerol |
Power Supply |
AC220± 10%, 50Hz |
