Produkujemy wyłącznie sprzęt do testowania laboratoriów
Obroty:

|
| Place of Origin: | Dongguan, China |
| Nazwa handlowa: | SKYLINE |
| Orzecznictwo: | CE |
| Model Number: | SL-F62 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Cena: | negotiable |
| Packaging Details: | Carton box |
| Delivery Time: | 10days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300/month |
| Range and precision: | 0～±2μC (±0.001µC) | Outer cylinder size: | Diameter 500mm, height 1000mm |
|---|---|---|---|
| Inner cylinder size: | Diameter 400mm, height 800mm | Insulation bracket: | Fluorine resin/acrylic resin/polycarbonate resin |
| Friction cloth: | GB/T 12703.2-2021, size 500±10)mm×(450×10)mm | Acrylic: | Double rib knitting structure, mass per unit area: 230g/m2±15g/m2 |
| Nylon: | Double rib knitting structure, mass per unit area: 230g/m2±15g/m2 | Friction rod: | Outer diameter: (32 ± 0.2) mm, thickness of (3.1 ± 0.2) mm, length of 400 mm rigid polyvinyl chloride tube |
| Pad cover cloth: | same material as friction cloth, size: 450mm×400mm | Metal matting: | Area: 320mm × 300mm, thickness 3mm, grounded with polyethylene covered wire, material: aluminium alloy |
| Double-sided tape: | Thickness 50μm ~ 100μm, width: (20 ± 0.2) mm | Insulating rod size: | Diameter 20mm, length 500mm, material: acrylic resin |
| Specimen size: | GB/T 12703.2-2021: specimen according to (warp and weft) or (longitudinal and transverse) each three, specimen size: (350 ± 1) mm × (250 ± 1) mm; GB/T 12703.2-2009: specimens according to the warp and weft direction of each of the three pieces, specimen si | Dimension: | 600mm×600m×850mm |
| Weight: | 30kg |

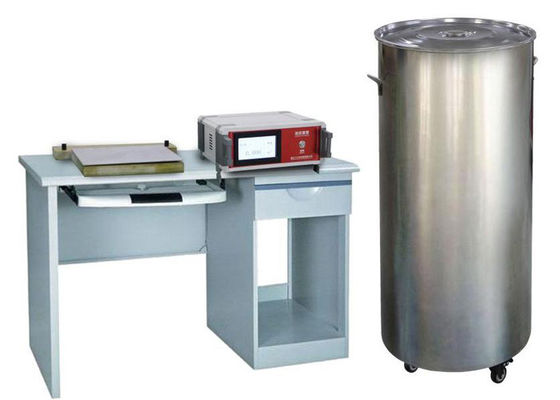

Determination of antistatic properties of textiles, medical protective clothing and other products
1.Full stainless steel Faraday cylinder.
2.Colour touch screen display, Chinese and English menu interface.
GB/T 12703.2-2021 Textiles Test method for electrostatic properties Part 2: manual friction method
GB/T 12703.2-2009 Textiles Evaluation of electrostatic properties Part 2: Charge surface density;
GB/T 12703.3-2009 Textiles electrostatic properties of the evaluation of part 3: charge and other standards;.
GB/T 12703-1991 Textile electrostatic test methods 7.2 Friction charging of work clothes (E method);
GB 19082-2009 Technical requirements for medical disposable protective clothing 5.9 Antistatic properties;
GB/T12014-2019 Protective clothing Anti-static clothing;
GB/T12014-2009 Anti-static clothing.
YY/T 1642-2019 Medical protective caps;
YY∕T 1799-2020 Technical requirements for reusable medical protective clothing;
GB 19082-2023 Technical requirements for medical disposable protective clothing 5.9 Antistatic;
| Range and precision of electrostatic charge determination | 0～±2μC (±0.001µC) |
| Outer cylinder size | Diameter 500mm, height 1000mm |
| Inner cylinder size | Diameter 400mm, height 800mm |
| Insulation bracket | Fluorine resin/acrylic resin/polycarbonate resin |
| Friction cloth | GB/T 12703.2-2021, size (500±10)mm×(450×10)mm |
| Acrylic | Double rib knitting structure, mass per unit area: 200g/m2±15g/m2 |
| Nylon | Double rib knitting structure, mass per unit area: 230g/m2±15g/m2 |
| Friction rod | Outer diameter: (32 ± 0.2) mm, thickness of (3.1 ± 0.2) mm, length of 400 mm rigid polyvinyl chloride tube |
| Pad cover cloth | same material as friction cloth, size: 450mm×400mm |
| Metal matting | Area: 320mm × 300mm, thickness 3mm, grounded with polyethylene covered wire, material: aluminium alloy |
| Double-sided tape | Thickness 50μm ~ 100μm, width: (20 ± 0.2) mm |
| Insulating rod size | Diameter 20mm, length 500mm, material: acrylic resin |
| Specimen size |
GB/T 12703.2-2021: specimen according to (warp and weft) or (longitudinal and transverse) each three, specimen size: (350 ± 1) mm × (250 ± 1) mm; GB/T 12703.2-2009: specimens according to the warp and weft direction of each of the three pieces, specimen size: 250mm × 400mm; GB/T 12703-1991: the specimen according to the warp and weft of each two, specimen size: 250mm × 300mm; |
| Dimension | 600mm×600m×850mm |
| Weight | 30kg |
1.Faraday cylinder 1 set
2.Charge test box 0～2μC±0.001µC 1set
3.manual friction device 1 set (in line with GB/T12703.2-2021)
4.Cable 1 piece
5.Product instruction manual 1 copy
1.Electrostatic brush 1 set
2.Base(Conforms to GB/T12703.2-2009,GB/T12703-1991) 1 pc.
3.Polyethylene tape (in line with GB12014)
4.Friction cloth:
GB/T 12703.2-2009: nylon plain cloth, size: 450mm×350mm;
GB/T 12703-1991: nylon fabric, size: 450mm×50mm;
